單刀單擲吸收型（匹配式）開關
| 型號 | 頻率范圍(GHz) | 插損(dB.Typ) | 隔離 (dB.Min) | 駐波 (Max) | 輸入功率 (W.Max) | 開關時間 | 電源@ +5V/-5V DC(mA.Typ) | 外形尺寸 | RoHS |
|---|---|---|---|---|---|---|---|---|---|

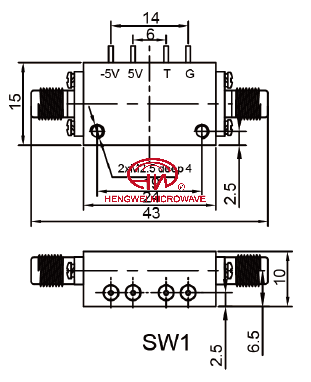

HWSPST005020A80 | 0.5-2 | 1.2 | 80 | 1.5 | 0.5 | 50 | 30/20 | SW1 | Yes |
0.5-18 | 2.9 | 80 | 2.2 | 0.5 | 50 | 30/20 | SW1 | Yes | |
HWSPST020040A80 | 2-4 | 1.2 | 80 | 1.5 | 0.5 | 50 | 30/20 | SW1 | Yes |
HWSPST020180A80 | 2-18 | 2.9 | 80 | 2 | 0.5 | 50 | 30/20 | SW1 | Yes |
HWSPST040080A80 | 4-8 | 1.5 | 80 | 1.5 | 0.5 | 50 | 30/20 | SW1 | Yes |
HWSPST080120A80 | 8-12 | 2.2 | 80 | 1.7 | 0.5 | 50 | 30/20 | SW1 | Yes |
12-18 | 2.5 | 80 | 1.7 | 0.5 | 50 | 30/20 | SW1 | Yes | |
HWSPST180265A70 | 18-26.5 | 3 | 70 | 2 | 0.5 | 50 | 30/20 | SW1 | Yes |
單刀單擲反射式 PIN 開關
| 型號 | 頻率范圍(GHz) | 插損(dB.Typ) | 隔離 (dB.Min) | 駐波 (Max) | 輸入功率 (W.Max) | 開關時間 | 電源@ +5V/-5V DC(mA.Typ) | 外形尺寸 | RoHS |
|---|---|---|---|---|---|---|---|---|---|
HWSPST005020R80 | 0.5-2 | 0.9 | 80 | 1.5 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST005180R80 | 0.5-18 | 2.5 | 80 | 2.2 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST020040R80 | 2-4 | 0.8 | 80 | 1.5 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST020180R80 | 2-18 | 2.5 | 80 | 2 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST040080R80 | 4-8 | 1.1 | 80 | 1.5 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST080120R80 | 8-12 | 1.5 | 80 | 1.7 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST120180R80 | 12-18 | 2.1 | 80 | 1.7 | 1 | 50 | 30/20 | SW1 | Yes |
HWSPST180265R70 | 18-26.5 | 3 | 70 | 2 | 1 | 50 | 30/20 | SW1 | Yes |

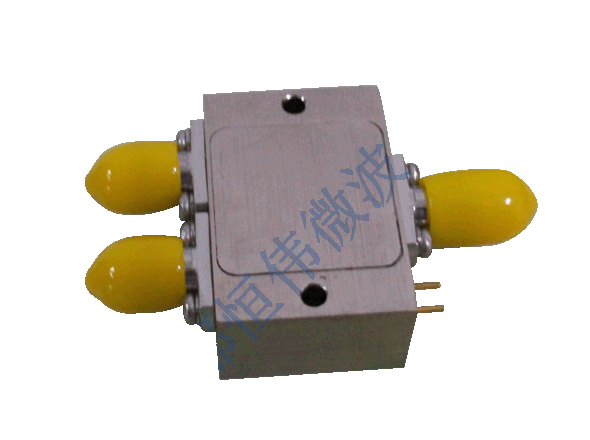

單刀雙擲吸收型（匹配式）開關
| 型號 | 頻率范圍(GHz) | 插損(dB.Typ) | 隔離 (dB.Min) | 駐波(Max) | 輸入功率 (W.Max) | 開關時間 | 電源@ +5V/-5V DC(mA.Typ) | 外形尺寸 | RoHS |
|---|---|---|---|---|---|---|---|---|---|

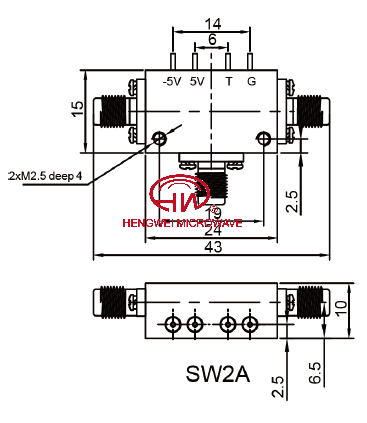

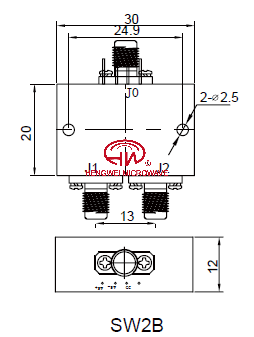

0.4-6 | 2 | 80 | 1.7 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes | |
HWSPDT005020A80 | 0.5-2 | 1.7 | 80 | 1.5 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
0.5-18 | 3.1 | 80 | 2.2 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes | |
HWSPDT018060A80 | 1.8-6 | 1.7 | 80 | 1.5 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
HWSPDT020040A80 | 2-4 | 1.7 | 80 | 1.5 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
2-18 | 3.1 | 80 | 2 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes | |
HWSPDT040080A80 | 4-8 | 1.9 | 80 | 1.5 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
HWSPDT080120A80 | 8-12 | 2.3 | 80 | 1.7 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
HWSPDT120180A80 | 12-18 | 2.7 | 80 | 1.7 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
HWSPDT180265A65 | 18-26.5 | 3 | 70 | 2.3 | 0.5 | 50 | 60/40 | SW2A/SW2B | Yes |
單刀雙擲反射式 PIN 開關
| 型號 | 頻率范圍(GHz) | 插損(dB.Typ) | 隔離 (dB.Min) | 駐波(Max) | 輸入功率 (W.Max) | 開關時間 | 電源@ +5V/-5V DC(mA.Typ) | 外形尺寸 | RoHS |
|---|---|---|---|---|---|---|---|---|---|
HWSPDT005020R80 | 0.5-2 | 1.3 | 80 | 1.5 | 1 | 50 | 60/40 | SW2A/SW2B | Yes |
HWSPDT005180R80 | 0.5-18 | 2.7 | 80 | 2.2 | 1 | 50 | 60/40 | SW2A/SW2B | Yes |
2-4 | 1.3 | 80 | 1.5 | 1 | 50 | 60/40 | SW2A/SW2B | Yes | |
2-18 | 2.7 | 80 | 2 | 1 | 50 | 60/40 | SW2A/SW2B | Yes | |
4-8 | 1.5 | 80 | 1.5 | 1 | 50 | 60/40 | SW2A/SW2B | Yes | |
HWSPDT080120R80 | 8-12 | 1.9 | 80 | 1.6 | 1 | 50 | 60/40 | SW2A/SW2B | Yes |
HWSPDT120180R80 | 12-18 | 2.3 | 80 | 1.7 | 1 | 50 | 60/40 | SW2A/SW2B | Yes |
單刀三擲吸收型（匹配式）開關 | 單刀三擲反射式 PIN 開關 | 單刀四擲吸收型（匹配式）開關 | 單刀四擲反射式 PIN 開關
單刀五擲吸收型（匹配式）開關 | 單刀五擲反射式 PIN 開關 | 單刀六擲吸收型（匹配式）開關 | 單刀六擲反射式 PIN 開關
